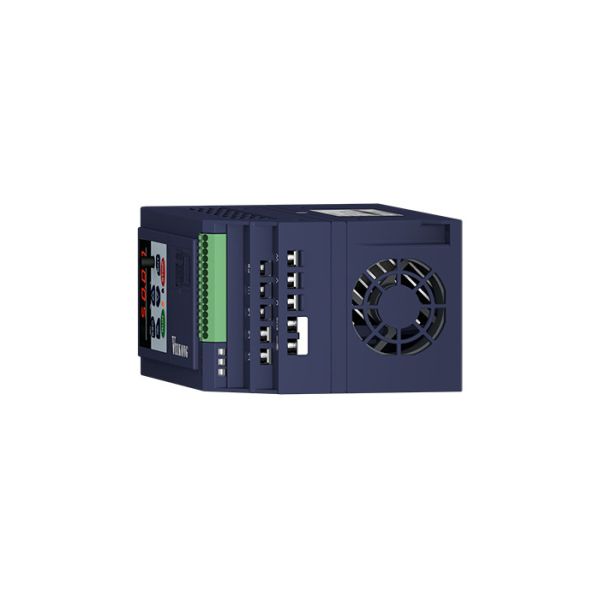

Mini MPPT VFD Solar Pump Inverter 50hz 60hz Three Phase / Single Phase Micro Type
1. The Power Range of VFD500M-PV Series for options
| Model | Power capacity(Kva) | Input current(A) | Output current(A) | Adaptable Motor (Kw) | Size | Brake unit |
| Heavy load | Light Load |
| 3 phase: 380V-480V, 50/60HZ |
| VFD500M-R75GT4B-PV | 1.6 | 3.2 | 2.5 | 4.2 | 0.75 | Size B | Internal |
| VFD500M-1R5GT4B-PV | 2.8 | 4.7 | 4.2 | 5.6 | 1.5 |
| VFD500M-2R2GT4B-PV | 3.7 | 7.8 | 5.6 | 9.4 | 2.2 |
| VFD500M-4R0GT4B-PV | 6.2 | 11.6 | 9.4 | 10.5 | 3.7 |
| VFD500M-5R5GT4B-PV | 8.6 | 15.6 | 13 | 17 | 5.5 | Size C | Internal |
| VFD500M-7R5GT4B-PV | 11.2 | 20.5 | 17 | 23 | 7.5 |
| 1 phase: 200-240V, 50/60Hz |
| VFD500M-R40GS2B-PV | 1.2 | 6.9 | 2.8 | 3.2 | 0.4 | Size A | Internal |
| VFD500M-R75GS2B-PV | 2.1 | 12.2 | 4.5 | 4.8 | 0.75 |
| VFD500M-1R5GS2B-PV | 3.1 | 17 | 8 | 10.6 | 1.5 | Size B |
| VFD500M-2R2GS2B-PV | 4.1 | 21 | 10.6 | 12.5 | 2.2 |
| 3 phase: 200V-240V, 50/60Hz |
| VFD500M-R40GT2B-PV | 1.2 | 4 | 2.8 | 3.2 | 0.4 | Size B | Internal |
| VFD500M-R75GT2B-PV | 2.1 | 7.1 | 4.5 | 4.8 | 0.75 |
| VFD500M-1R5GT2B-PV | 3.1 | 11.3 | 8 | 10.6 | 1.5 |
| VFD500M-2R2GT2B-PV | 4.1 | 14.5 | 12.5 | 2.2 | |
2. Veikong High Performance Solar Pump Inverter With Nice Features for Better Solar Sytem
1) High Efficient MPPT which can be up to 99%, it can help to generate the DC from
solar panels better.
2) Automatic start and stop function, make the whole system in an energy saving situation
3) More compact size to save delivery cost and much competitve price help to attract more
end users who want stable and basic functions.
4) It can support external display, well worked even in the control cabient
3. VEIKONG VFD500M-PV series Applications and Some Nice Feedback from Clients
4. Who We Are? Veikong Industrial Co., Ltd from China, one of the most reliable supplier
Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.
5. Production Detailed Pics
6. Factory Environment For your Reference
